STC Scanner Cables are PVC jacketed with six individually shielded pairs of 20 gauge wire. Cable insulation is rated for 300 volt service. Each scanner cable has a potted connector on one end for mating to the scanner. Most scanner cables have a circular connector on the opposite end for connection to the detector enclosure. There are several standard configurations offering various cable lengths, conduit lengths, and adapter hardware.
2058-26xxx Series
|
ITEM NO.
|
DESCRIPTION
|
LENGTH
|
|
2058-260
|
IB Scanner Cable
|
65’
|
|
2058-260BN
|
IB Scanner Cable/BNSF (full conduit)
|
65’
|
|
2058-260HW
|
Wheel Scanner Cable (w/ 20’ conduit)
|
65’
|
|

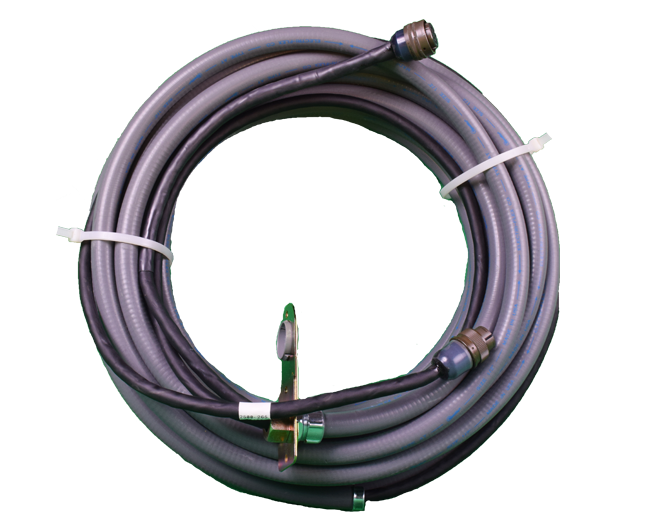

2058-260PM
|
Bearing Scanner Cable (w/ 20’ conduit)
|
65’
|
|
2058-265
|
IB Scanner Cable
|
100’
|
|
2058-265BN
|
IB Scanner Cable/BNSF (full conduit)
|
100’
|
|
2058-265HB
|
Bearing Scanner Cable (w/ 55’ conduit)
|
65’
|
|
2058-265HW
|
Wheel Scanner Cable (w/ 20’ conduit)
|
100’
|
|
2058-265PM
|
Bearing Scanner Cable (w/ 20’ conduit)
|
100’
|
|
2058-267
|
Scanner Cable
|
130’
|
|
2058-267BN
|
Scanner Cable/BNSF (full conduit)
|
130’
|
|
2058-267PM
|
Bearing Scanner Cable (w/ 20’ conduit)
|
130’
|
|
2058-268
|
IB Scanner Cable
|
85’
|
|
2058-268BN
|
Wheel Scanner Cable/BNSF (full conduit)
|
65’
|
UP-260-xx Series
|
ITEM NO.
|
DESCRIPTION
|
LENGTH
|
|
UP-260-01
|
Wheel Scanner Cable Set (1 Right + 1 Left)
|
65’
|
|
UP-260-02
|
Wheel Scanner Cable Set (1 Right + 1 Left)
|
85’
|
|
UP-260-03
|
Wheel Scanner Cable Set (1 Right + 1 Left)
|
100’
|
|
UP-260-04
|
Scanner Cable Set Type II (1 Right + 1 Left)
|
65’
|
|
UP-260-05
|
Scanner Cable Set Type II (1 Right + 1 Left)
|
85’
|
|
UP-260-06
|
Scanner Cable Set Type II (1 Right + 1 Left)
|
100’
|
2500-2xx Series
|
ITEM NO.
|
DESCRIPTION
|
LENGTH
|
|
2500-245
|
Bearing or Wheel Scanner Cable w/ 35’ Conduit
|
45’
|
|
2500-265
|
Bearing or Wheel Scanner Cable w/ 55’ Conduit
|
65’
|
|
2500-270
|
Bearing or Wheel Scanner Cable w/ 90’ Conduit
|
100’
|
