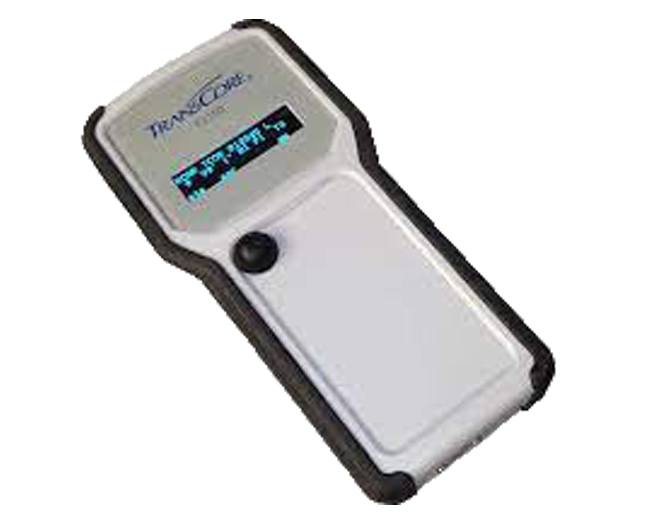

Encompass® 1150 Mobile RFID Reader

TransCore’s Encompass 1150 (E1150) Mobile RFID Reader offers a portable and
cost-effective solution for decoding or verifying RFID tags. The lightweight,
ergonomic design makes it the ideal choice for parking, tolling, railroad,
ground management, transportation asset management, field service, and
warehouse operations.

#66-200-001

Download PDF Contact Us

General Specifications

Frequency

Operates at specified frequencies in the 915 MHZ band (North American Version)

Read Range

4 - 12 ft (1.2 - 3.7 m)

Protocols

Reads data from the American Trucking Association (ATA), American Association of Railroads (AAR), Weigand (multiple formats), Super eGo® (SeGo), eGo (18000-6b), and Title 21/Allegro

Dimensions

8.1 x 4.1 x 1.5 in (20.6 x 10.4 x 3.8 cm)

Weight

0.9 lb (0.4 kg)

Operating Temperature

-4°F to +122°F (-20°C to +50°C)

This versatile reader works with most types of RFID tags. Tag data can be transferred from the reader to a notebook computer, desktop PC, or Smartphone using a USB cable or wireless
Bluetooth connection. Operation of the reader is quick and easy using the single push-button and audible signal tones.

Portable and Cost-Effective

Lightweight, rugged, ergonomic design is ideal for office or field use
Single push-button and audible signals for quick and easy operation
Bright high-contrast display for day or night use
Connects to PC, mobile computer, or Smartphone® with USB cable or Bluetooth®.

Features:

Works with most standard tag protocols
Intuitive single port power/data connection
Rugged: Meets or exceeds IP64
Software compatible with Windows® XP, Vista, 7 (32 and 64 bit versions) and Android operating systems
