When the 2300-752 MPRX Panel is connected to a SmartScan defect detector system, bearing and wheel temperatures are uniquely associated with the car records that are included in the S-9203A and S-9203B reports. In the event of a detected defect, alarm announcements delivered on the radio will include the car number with the defect. The SmartScan system maintains records for the last 100 trains that it has scanned. The records can be delivered over a network IP connection or copied to a local PC through a serial connection. Records can be viewed in a standard ASCII text format.

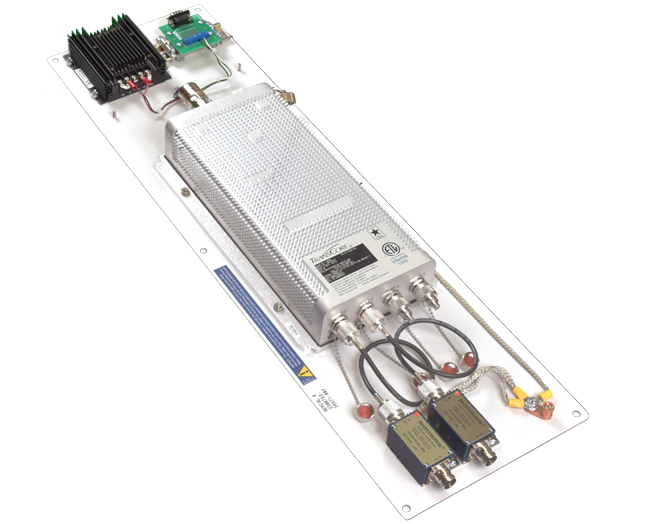

The 2300-752 MPRX Panel consists of:
- a Transcore® MPRX
- a DC/DC boost converter
- Coaxial surge arresters
- DB9M serial connection

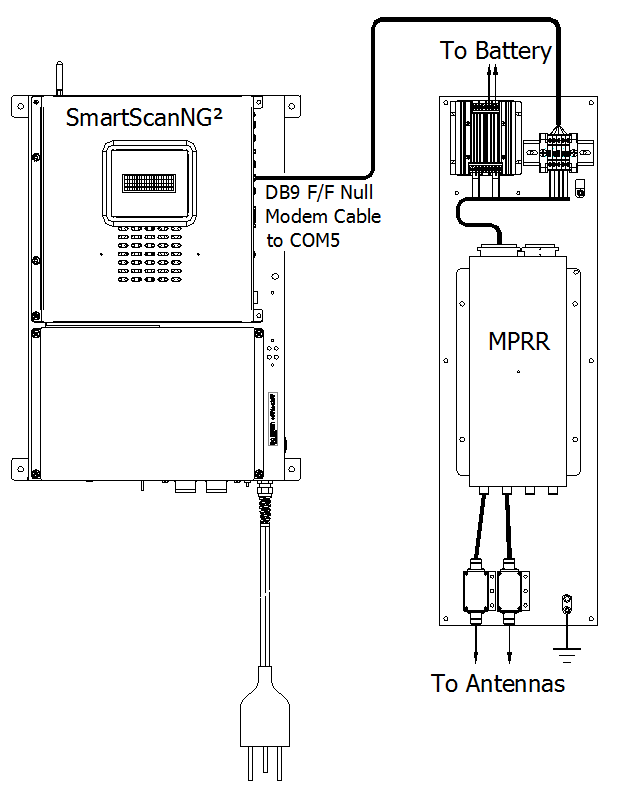

MPRX WIRING:
