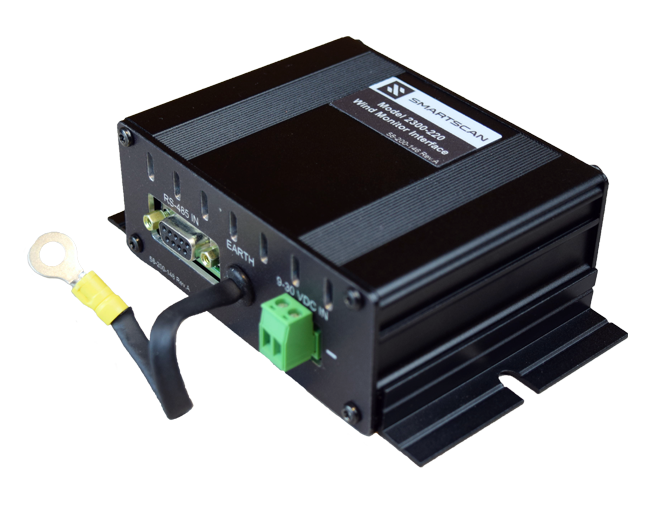

Wind Monitor Interface

The Model 2300-220 Wind Monitor Interface offers a convenient means to connect the RM Young Wind Monitor to the SmartScanNG or SmartScanNG² Detector System. Its interface circuitry provides multi-stage surge protection and DC isolation. Its rugged, compact design allows for easy installation and maintenance.

#2300-220

Download PDF Contact Us

General Specifications

Voltage Input

9-30 VDC

Voltage Output

12.00 VDC @ 1.00A

Dimensions

3.50”W x 5.50”L x 1.75”H

Weight

0.75 lbs

Temperature Spec. – Industrial

-40°C to +71°C (-40°F to +160°F)

RoHS Compliant

2300-220 Wind Monitor Interface features include:

Ventilated, wall-mountable aluminum enclosure
Power indicator
Pluggable connectors
Straight-through DSUB9 connection from the RS485 interface to the SmartScanNG²
Screw-type output connections use terminal labeling that matches the Wind Monitor input
Multi-stage surge arrestor for RS485 signals
Transient surge suppression for DC-DC converter
AC noise filtration
