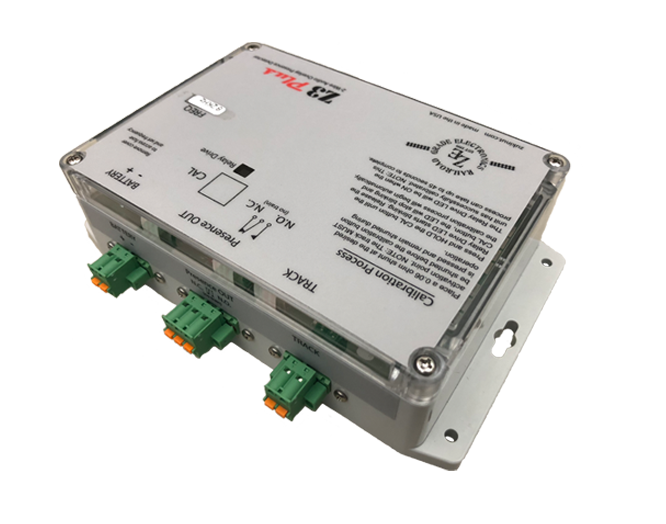

The Z3-Plus is a 2-Wire audio overlay track circuit operating on 9 to 30VDC. It is field configurable for the following track drive frequencies: 8.2K, 10K, 11.5K, 13.2K, 15K, 17.5K, 20K, 26KHz.
The Z3 Plus track circuit provides a sinusoidal output under all track load conditions minimizing possible harmonic interaction with other audio equipment on the track. The unit also provides consistent activation point independent of operating battery. Digital receiver circuitry provides for precise receiver operation. The unit is calibrated by simply dropping a shunt at the activation point and pushing the cal button. Additionally, a non-vital loss of shunt timer is provided to further optimize consistent performance. An LED has been provided to allow a visual indication of the relay drive. N.O. and N.C. dry contact presence output simplifies interface to wayside equipment.
