Wheel Detector, Frauscher Zero-Speed Dual Gating Assembly

Model 2100-696

The Frauscher Zero-Speed Dual Gating Wheel Detector Assembly is a rail-mounted device that generates precision wheel timing signals for the SmartScan NG² Defect Detector. The combination of inductive operating principles and the robust design of the RSR110 sensors guarantee high reliability, even when subjected to extreme mechanical, electromagnetic, climatic and environmental working conditions.

Download PDF Contact Us

General Specifications

Voltage Input

8 VDC to 33 VDC

Dimensions

30.81"L x 10.50"W x 6.75"H

Temperature Spec. – Industrial

-40°F to +185°F (-40°C to +85°C)

Weight

Total Weight 53.70 lbs. (Entire assembly including rail mount, transducers, and cables.)

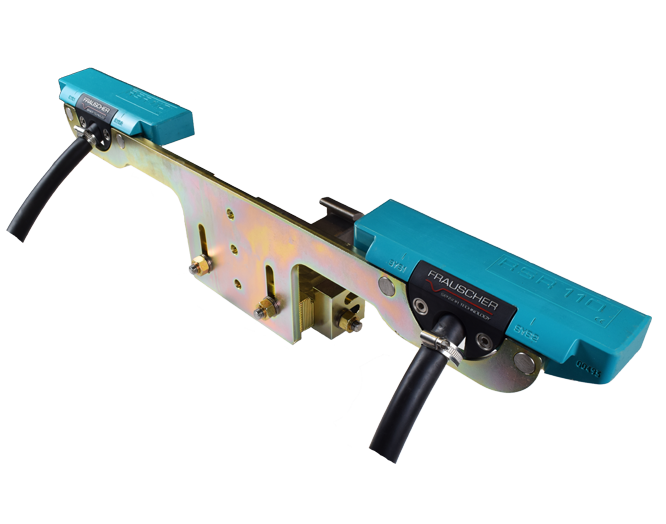

The Frauscher Zero-Speed Dual Gating Wheel Detector Assembly mechanically clamps two RSR110 gating transducers to the rail, thus eliminating the need to drill mounting holes. Its rail claw bracket is fully adjustable and allows for proper transducer alignment over a wide range of rail sizes. For optimum performance, the gating transducers must be positioned 1-9/16 inches (40 millimeters) below the crown of the rail.

The wheel timing signals generated allow a SmartScan NG² defect detector system to:

Coordinate bearing and wheel temperature measurements
Determine a train's direction
Calculate a train's exit speed
Calculate a train's length
Identify individual railcars and locomotives based on axle spacing patterns

The plug‑in connector cable significantly reduces the effort required for assembly, disassembly or changing the sensor, which in turn gives rise to savings both in terms of money and time. It also minimizes the amount of time spent by service personnel in a hazardous area.

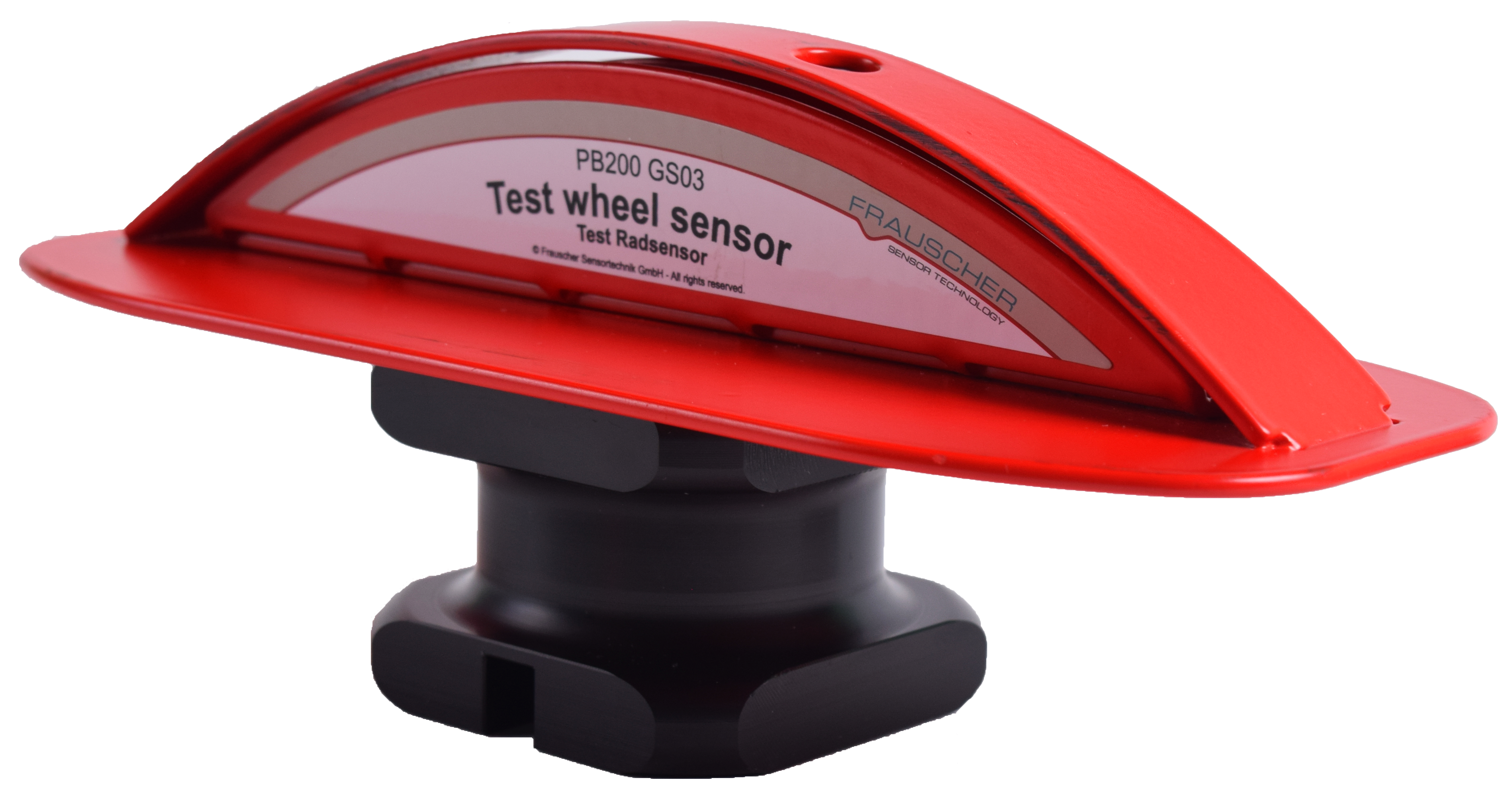

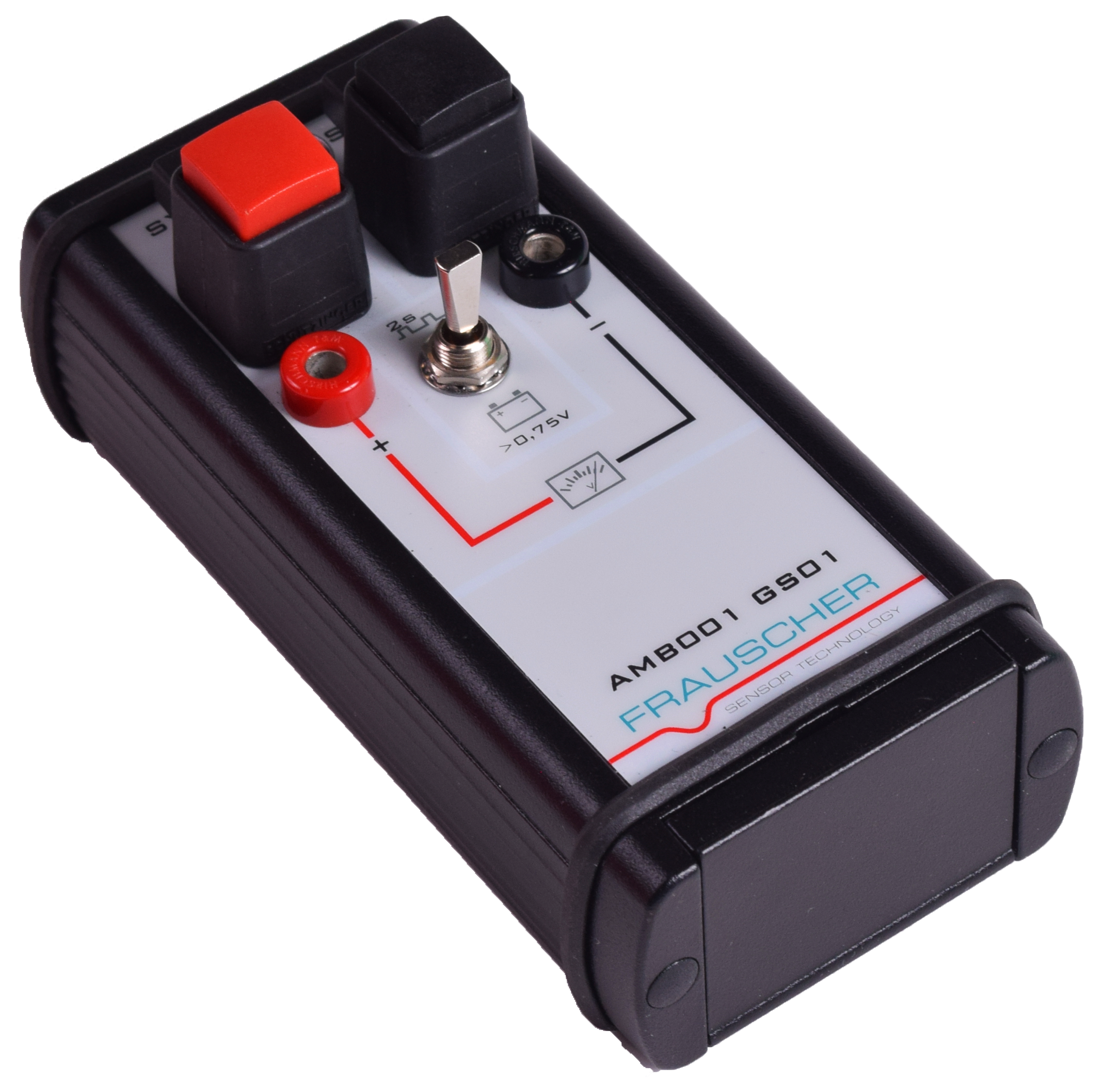

The Frauscher AMB (Adjustment & Maintenance Box) and PB200 Sensor Target allow for quick and easy sensor calibration and verification of operation.
