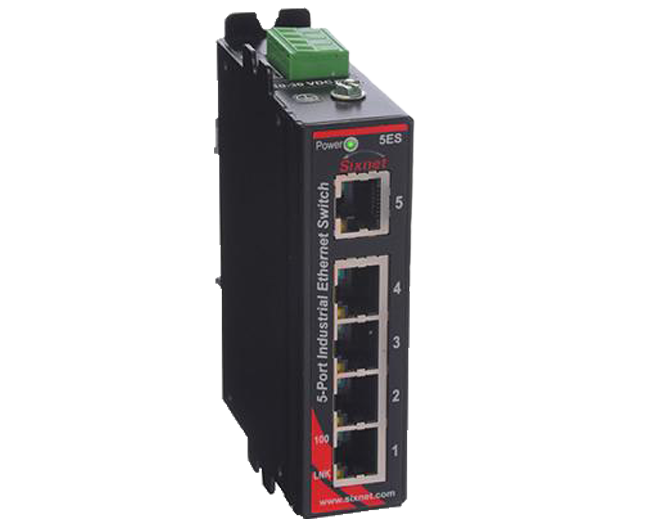

Industrial Ethernet Switch

Model SLX-5ES-1

The SLX-5ES-1 is a 5 port industrial Ethernet switch designed to meet the highest demands of extreme applications. It offers protected circuitry and a tough metal DIN‑rail mountable enclosure to ensure rugged reliability.

Download PDF Contact Us

General Specifications

Voltage Input

10-30 VDC

Temperature Spec - Industrial

-40°F to 185°F (-40°C to +85°C)

Dimensions

4.50"L x 3.79"W x 1.00"H (11.43cm x 9.63cm x 2.54cm)

Weight

6 oz (0.17 kg)

SLX-5ES-1 FEATURES:

Fast wire-speed switching
Intelligent message routing - No collisions
Ideal for any system
PLUG & PLAY SIMPLICITY
Auto-sensing for speed and duplex
Auto-mdi/mdix-crossover works with straight or crossed cables
Auto-polarity corrects for crossed signals
Ultra-reliable 1,000,000+ hours MTBF
Dual power inputs with industrial spike protection
DIN-rail or direct panel mounting
UL/CSA (CUL), CE, hazardous locations (Zone 2) and maritime rated
