Wheel Detector, Frauscher Sensor Kit for 2600 AEI
Models 2600-547 and 2600-548
The Frauscher Sensor Kit provides all necessary hardware to install Frauscher sensors to a 2600 Series AEI system.
General Specifications
Output Signal
Wheel sensor current: constant current (5 mA) when damping by train wheel.
Power Supply
Voltage: +8 VDC to +33 VDC
Conditions
* UV resistance: yes
* Protection class: IP65 / IP68 to 8 kPa/60 min.
* Wheel diameter: 300 mm to 2 100 mm
* Speed: 0 km/h (static) to 450 km/h
Temp. Spec. – Industrial
-40°C to +85°C
The Model 2600-54x Frauscher Sensor Kit for 2600 AEI consists of:

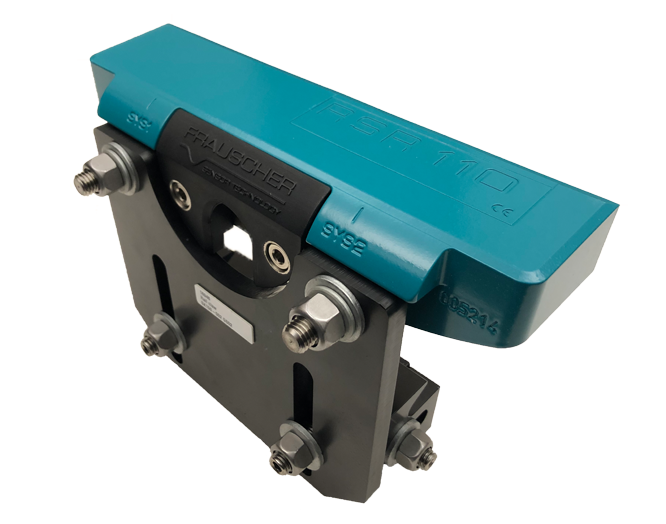

- Frauscher RS110 Dual Wheel Sensor(s)
- Frauscher Rail Claw(s)
- signal cable(s)
- Frauscher WSC001 Signal Converter (WSC)
The WSC provides the necessary circuitry to interface the RSR110 sensor to a 2600-020 AEI System. The 2600-548 Frauscher Sensor Kit is designed for use when installing Frauscher sensors in the standard “truck-trap” configuration (see diagram below). The 2600-547 is designed for AEI sites with a single Frauscher pair.
