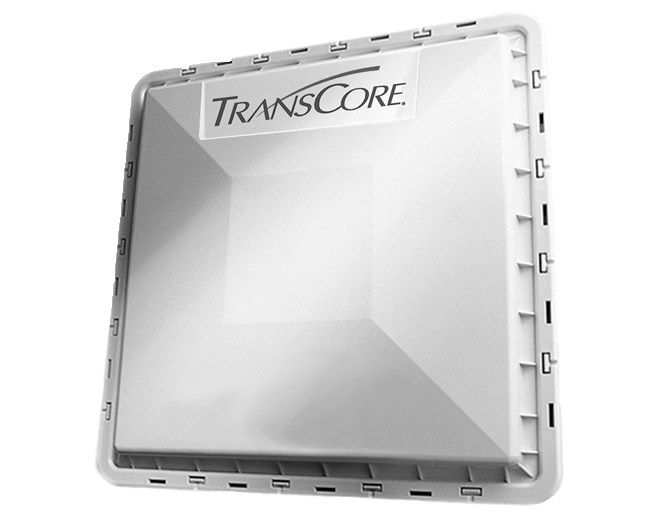

Encompass® 4 Reader

Encompass® 4 Reader

The Encompass® 4 is a fully integrated, self-contained 915MHz wireless radio frequency identification (RFID) reader that is specifically targeted at high-performance applications in parking, security access, electronic vehicle registration (EVR) and traffic management. Each Encompass 4 reader includes a radio frequency (RF) module, digital signal processor (DSP), power supply, antenna (unless external antenna option is selected), input/output interfaces, and RS–232 or RS–422 serial communications interface.

#64-100-002
Download PDF Contact Us

General Specifications

Frequency Range
902 to 928 MHz capable 911.75 to 919.75 MHz FCC-authorized in United States
Internal Antenna Gain
9.5 dBi
Range
Read performance varies depending on tag and reader configuration and environment. Typical read range should be 12 to 17 ft (3.7 to 5.2 m).
Input Power
16 to 20V AC, 47 to 63 Hz, or 16 to 28V DC
RF Output Power
2 W maximum to 200 mW minimum, selectable in 1dB steps
Physical
Size: 15.5 x 15.5 x 3.25 in. (39.4 x 39.4 x 8.25 cm) Weight: 9.5 lb (4.3 kg)
Operating Air Temperature
-40°F to +131°F (-40°C to +55°C)

The Encompass® 4 Reader System is a dual-protocol reader supporting the low-cost, high-performance radio frequency identification (RFID) technology.

Features:

  • Ideal for parking, security access, electronic vehicle registration, and traffic management
  • Multiprotocol
  • Fixed mount, integrated package with waterproof enclosure
  • Reads Super eGo® (SeGo), eGo, ATA/AAR, and/or IAG tags
  • 915 MHz RF band operation in North America
  • Half-frame, full-frame (ATA), and Wiegand capability
  • Internal and external antenna models
  • Real-time clock
  • Tag read buffering
  • Programmable RF output power
  • Quick, simple installation

Encompass® and eGo® are a registered trademarks of TC License, Ltd.
